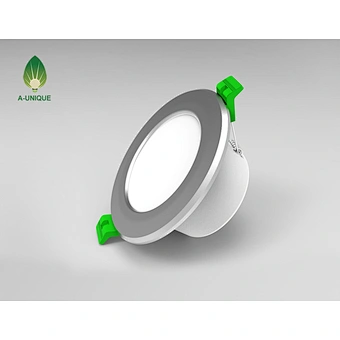

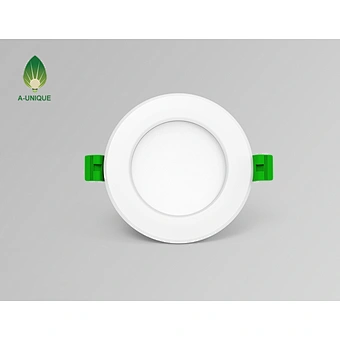

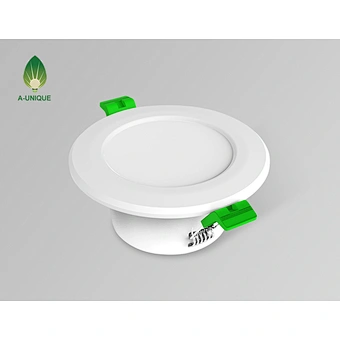

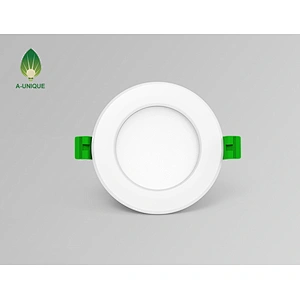

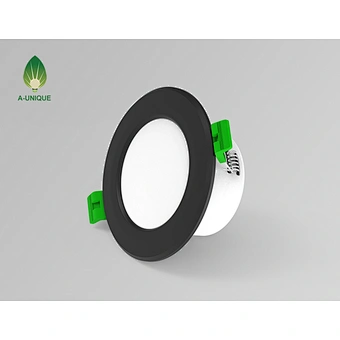

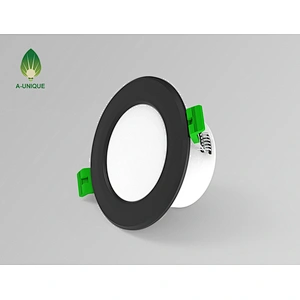

Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color
Versatile LED Downlight with dual watt and tri color

Versatile LED Downlight with dual watt and tri color

Model NO.
AU33-DL0710-3C/AU33-DL0812-3C
Features:

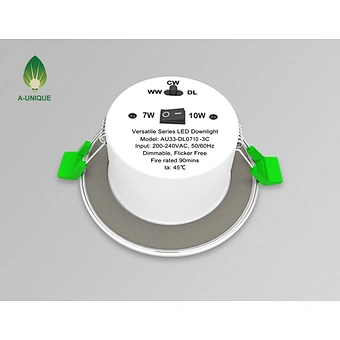

1. Dual wattage control: 7W / 10W or 8W /1 2W selectable
2. Tri-colour: WW / CW / DL selectable via switch on rear
3. Interchangeable bezel: Can be white / black / polished silver /satin nickel
4. Flicker Free Driver: For better visual comfort
5. Triac Dimmable,Compatible to most branded dimmers, and C-bus2 system
6. Fire Rated: 90mins - BS476-21 (For Europe)
7. SAA, C-tick, CE and RoHS approved
Quantity:

Product Model No.:
AU33-DL0710-3C; AU33-DL0812-3C

Model No.AU33-DL0710-3CAU33-DL0812-3C
Dimension(mm)φ110*H50φ110*H50
Cutout(mm)80-10080-100
Wattage(w)7W / 10W switchable8W / 12W switchable
Input Voltage(v)AC220~240V
Light SourceSMD2835
SDCM<6
CCT(K)3 CCT3000K-4000K-5000K or 3000K-4000K-6000K Switchable
Luminious Flux (lm)±5%7W (680-770LM) / 10W (800-960LM)8W (750-860LM) / 12W (950-1150LM)
CRI>80Ra
Beam Angle(°）90°
DimmingYes, Triac Dimming
Fire RatedYes
Protection ClassClass I Or Class II
Degree of protection(IP)IP20 for the whole luminaire, IP44 for the front portion of the lamp
MaterialTrimIron
HeatsinkAluminum
DiffuserPC
ColorBezelwhite / black / silver / satin nickel
Housingwhite / black
L7054000Hrs
Glow Wire Test(℃）650℃
Operation Terp.(℃）-20~ 45℃
InstallationRecessed
CertificatesCE, Rohs, SAA & C-tick
Warranty3 Years

Applications:
Hospitality applications | Residential applications | Office Buildings | Hotels | Shopping Malls | Supermarkets
