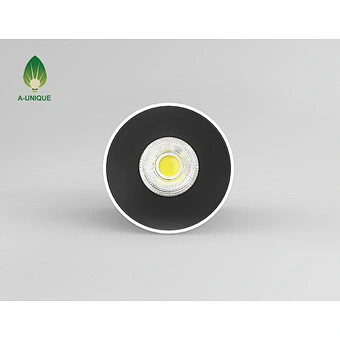

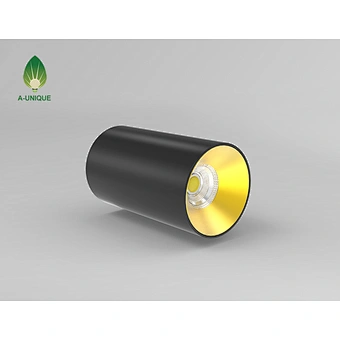

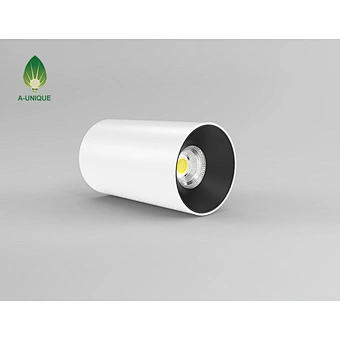

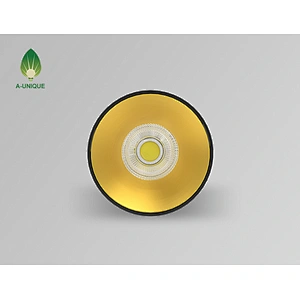

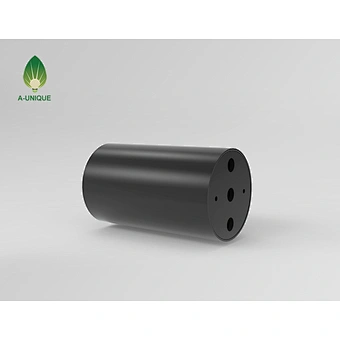

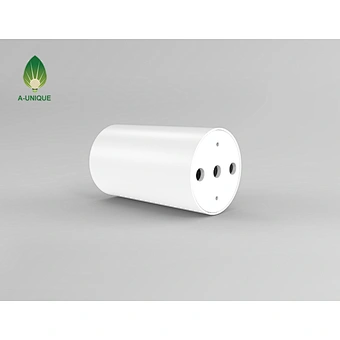

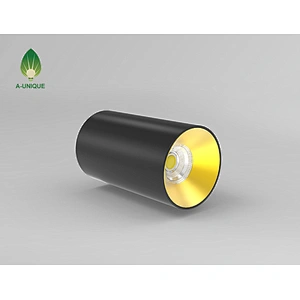

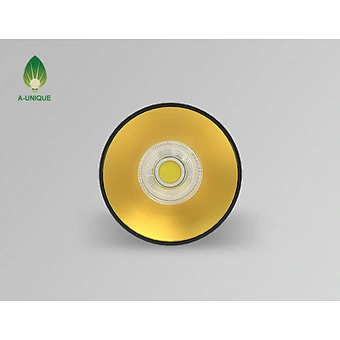

Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight
Surface Mounted LED Downlight

Surface Mounted LED Downlight

Model NO.
AU20-SMDL
Features:
1. 60mm & 80mm diameter available;
2. 130mm, 150mm & 180mm height, other height can be customized;
3. Deep recessed design, low glare;
4. Various reflector colors for choice: matt white, matt black, matt gold, glossy black, rose gold plating
5. SAA, C-tick, CE and RoHS approved LED Driver
Quantity:

Product Model No.:

AU20-SMDL

Specifications
Model No.:AU20-SMDL7W60AU20-SMDL10W60AU20-SMDL15W60AU20-SMDL12W80AU20-SMDL15W80AU20-SMDL18W80
Dimension(mm):D60xH130mmD60xH150mmD60xH180mmD80xH130mmD80xH150mmD80xH180mm
Wattage:7W10W15W12W15W18W
Voltage:AC200~240V 50/60Hz
LED Chip:COB, >80Ra
CCT:2700K, 3000K, 4000K, 5000K, 6000K or Tri-color available
Luminaire EER(lm/W):70~80lm/w
Body Material:Aluminum
Trim Color:White / Black
Reflector Color:White / Black / Grey / Gold
Beam Angle:24°
LED Driver:Dimmable
PF:>0.9
IP Rating:IP20
Warranty3 Years
Operating Temperature-20 ~ 45℃
CertificateCE, Rohs, SAA & C-tick

Applications:
Upmarket buildings such as hotels , shopping malls & residential.
