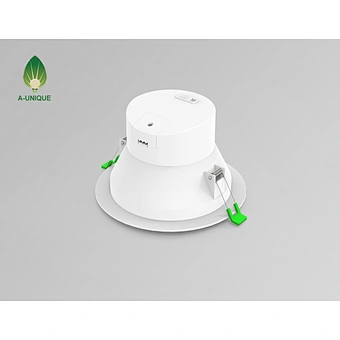

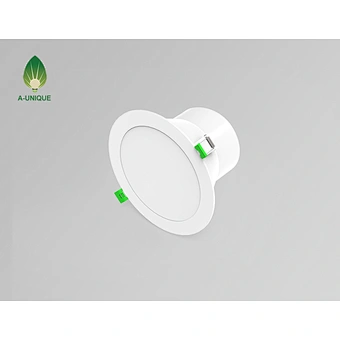

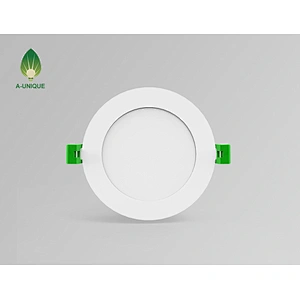

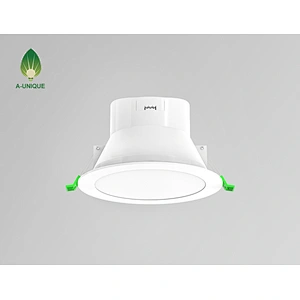

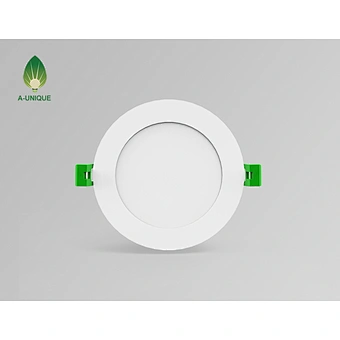

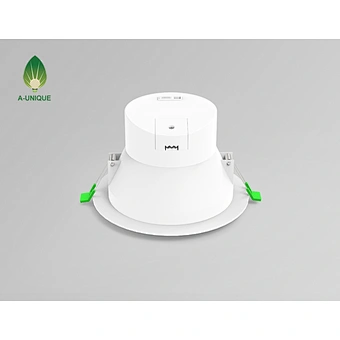

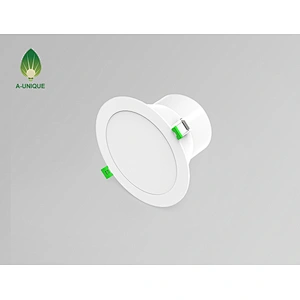

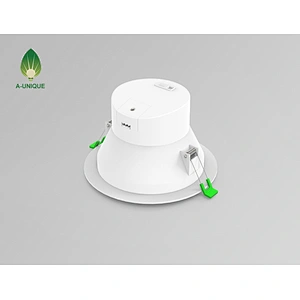

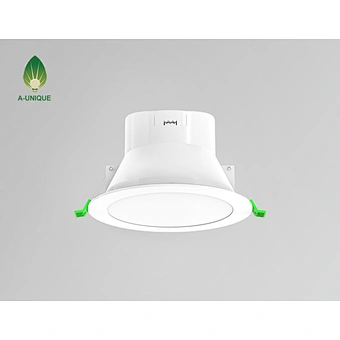

90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver

90mm cutout 10W SMD LED Downlight with built-in dimmable Driver

Model NO.
AU06-DL10W-B30
Features:
1. Distinctive deep recessed, low glare design
2. Tri-colour: WW / CW / DL selectable via switch on rear
3. ECO Plastic-Aluminum housing, cost efficient
4. Built-in dimmable driver, flicker free version available
5. Triac Dimmable,Compatible to most branded dimmers, and C-bus2 system
6. 3 Years warranty
Quantity:

Product Model No.:
AU06-DL10W-B30

Model No.AU06-DL10W-B30
Dimension(mm)φ115*H58
Cutout(mm)90
Wattage(w)10W
Input Voltage(v)AC200~240V
Light SourceSMD2835Chip
SDCM<6
CCT(K)Single CCT or Tri-color
Luminious Flux (lm)±5%700-900LM
CRI>80Ra
Beam Angle(°）90°
DimmingYes, Triac Dimming
Fire RatedYes
Protection ClassClass II
Degree of protection(IP)IP20 for the whole luminaire, IP44 for the front portion of the lamp
Housing MaterialPlastic + Aluminum
ColorHousingwhite
L7054000Hrs
Glow Wire Test(℃）650℃
Operation Terp.(℃）-20~ 45℃
InstallationRecessed
CertificatesCE, Rohs, SAA & C-tick
Warranty3 Years

Applications:
Hospitality applications | Residential applications | Office Buildings | Hotels | Shopping Malls | Supermarkets
