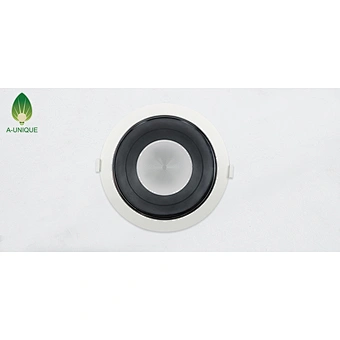

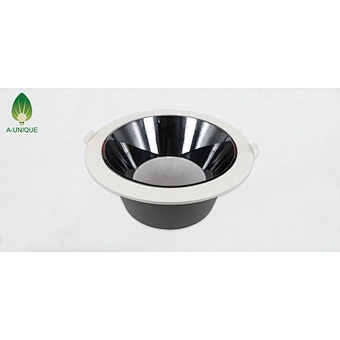

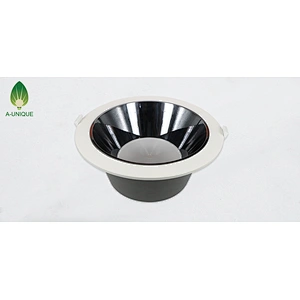

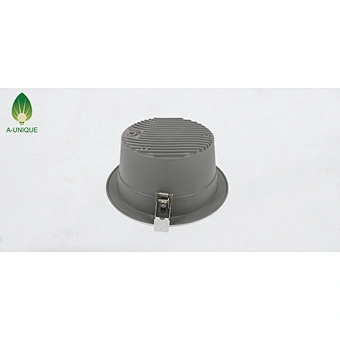

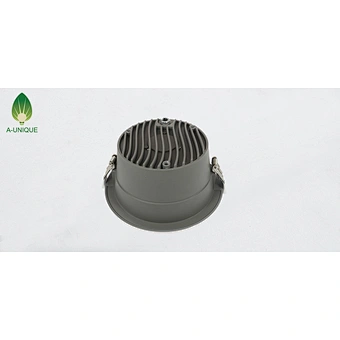

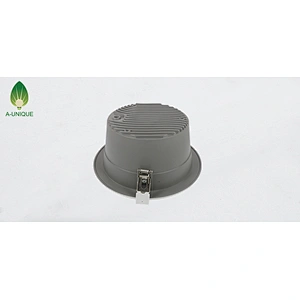

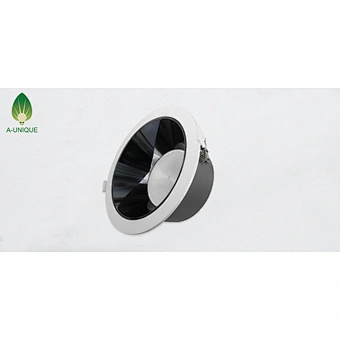

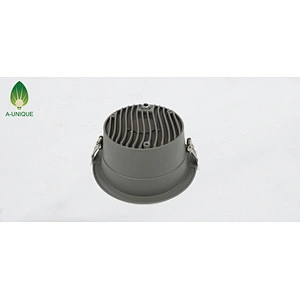

Low glare SMD LED Downlight
Low glare SMD LED Downlight
Low glare SMD LED Downlight
Low glare SMD LED Downlight
Low glare SMD LED Downlight
Low glare SMD LED Downlight
Low glare SMD LED Downlight
Low glare SMD LED Downlight
Low glare SMD LED Downlight
Low glare SMD LED Downlight
Low glare SMD LED Downlight

Low glare SMD LED Downlight

Model NO.
AU27-DL15W/DL20W-6/DL35W-8
Features：
(1) Deep recessed low glare design
(2) High output luminaire EER
(3) Available in 5 sizes/wattages combinations:
> 115mm cutout / 15w
> 165mm cutout / 20w
> 195mm cutout / 40w
(4) Single CCT & Tri-colopr optional
(5) IP44 Rated
(6) SAA, C-tick, CE and RoHS approved
Quantity:

Product Model No.:

AU27-DL15W / AU27-DL20W-6 / AU27-DL35W-8

Specifications
Model No.:AU27-DL15WAU27-DL20W-6AU27-DL35W-8
Dimension(mm):φ135*H66mm

Cutout: 115mm

φ190*H90mm

Cutout: 165mm

Φ224*98mm Cutout:195mm
Wattage:15W20W35W
Voltage:AC200~240V 50/60Hz
LED Chip:SMD2835, >80Ra
CCT:2700K, 3000K, 4000K, 5000K, 6000K or Tri-color available
Luminaire EER(lm/W):70~80lm/w80~90lm/w80~90lm/w
Body Material:Aluminum
Color:White Trim + Grey Body + Black reflector
Beam Angle:75°
LED Driver:Dimmable
PF:>0.9
IP Rating:IP44
Warranty3 Years
Operating Temperature-20 ~ 45℃
CertificateCE, Rohs, SAA & C-tick

Applications:
Residential & commercial applications like homes, offices, hotels & shopping center
