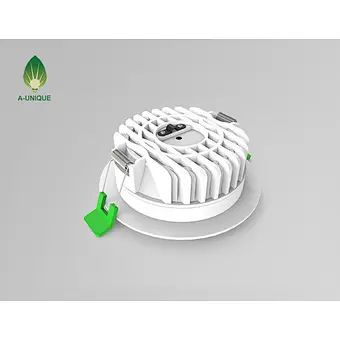

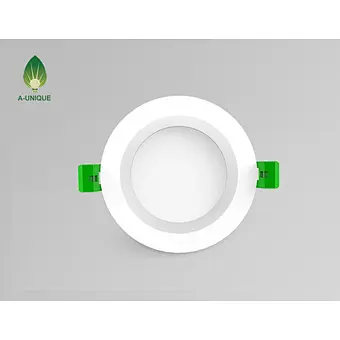

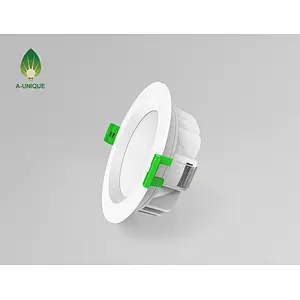

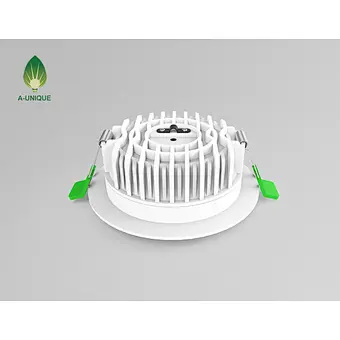

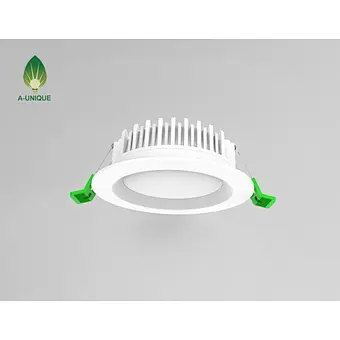

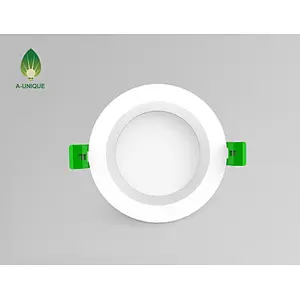

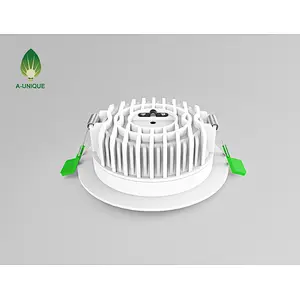

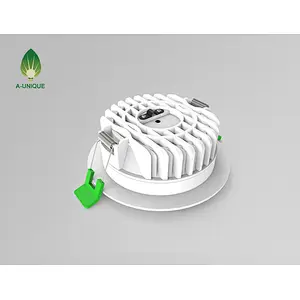

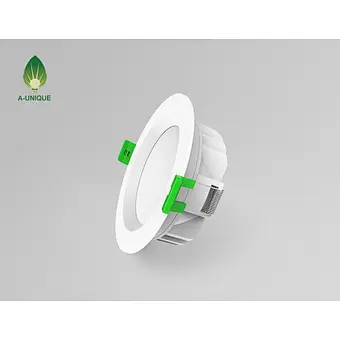

3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W
3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W

3.5inch Recessed SMD LED Downlight 90mm cutout 10W 12W

Model NO.
AU12-DL12W
Features:
1. Advanced die-casting Aluminum heat sink
2. Single CCT or Tri-color optional
3. Different housing color, Can be White / Black / Silver / Brushed Chrome
4. Triac Dimmable,Compatible to most branded dimmers, and C-bus2 system
5. Flicker Free options available
6. Fire Rated option available
7. SAA, C-tick, CE and RoHS approved
Quantity:

Product Model No.:
AU12-DL10W, AU12-DL12W

Model No.AU12-DL10WAU12-DL12W
Dimension(mm)φ110*H42φ110*H42
Cutout(mm)9090
Wattage(w)10W12W
Input Voltage(v)AC200~240V
Light SourceSMD2835
SDCM<6
CCT(K)1 CCT2700K, 3000K, 4000K, 5000K, 5700K, 6500K available
3 CCT3000K-4000K-5000K or 3000K-4000K-6000K Switchable
Luminious Flux (lm)±5%700-860LM800-1020LM
CRI>80Ra (>90Ra options available if needed)
Beam Angle(°）90°
DimmingYes, Triac Dimming
Fire RatedAvailable if needed
Protection ClassClass Ⅲ
Degree of protection(IP)IP44
MaterialTrimAluminum
HeatsinkAluminum
DiffuserPC
Housing ColorWhite / Black / Silver /Brushed Chrome
L7054000Hrs
Glow Wire Test(℃）650℃
Operation Terp.(℃）-20~ 45℃
InstallationRecessed
CertificatesCE, Rohs, SAA & C-tick
Warranty3 Years

Applications:
Hospitality applications | Residential applications | Office Buildings | Hotels | Shopping Malls | Supermarkets

Send Message

* clear input
*

Related Products

Surface Mounted LED Downlight
Surface Mounted LED Downlight
Model NO. AU20-SMDL
3.5inch LED Downlight 90mm cutout 12W
3.5inch LED Downlight 90mm cutout 12W
Model NO. AU08-DL12W
3.5inch Square SMD LED Downlight 90mm cutout 10W 12W
3.5inch Square SMD LED Downlight 90mm cutout 10W 12W
Model NO. AU12-DL12W-S
3.5inch Flat SMD LED Downlight 90mm cutout 10W 12W
3.5inch Flat SMD LED Downlight 90mm cutout 10W 12W
Model NO. AU09-DL10W90
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
90mm cutout 10W SMD LED Downlight with built-in dimmable Driver
Model NO. AU06-DL10W-B30
Low glare SMD LED Downlight
Low glare SMD LED Downlight
Model NO. AU27-DL15W/DL20W-6/DL35W-8
Pinhole LED Downlight
Pinhole LED Downlight
Model NO. AU05-PHDL10W

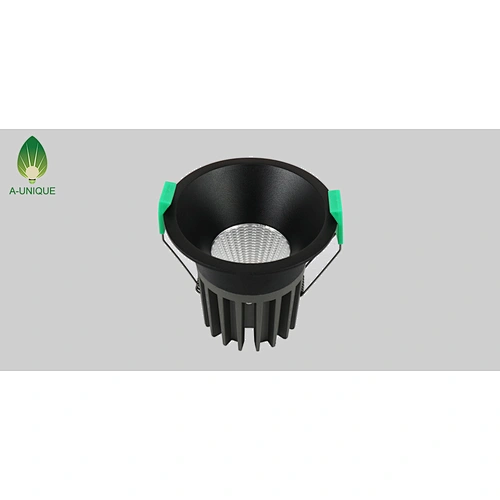

Deep recessed low glare COB LED Downlight AU21 series
