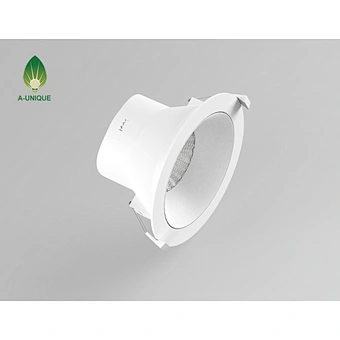

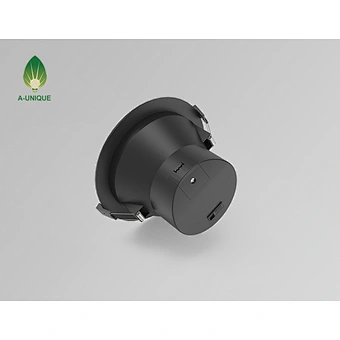

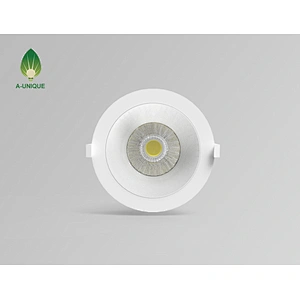

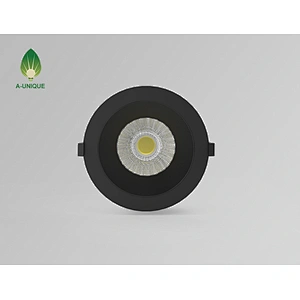

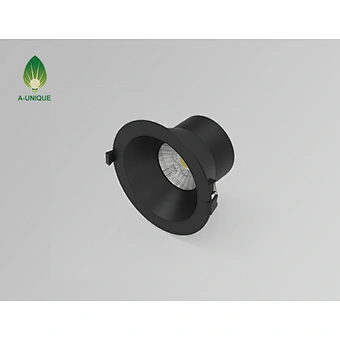

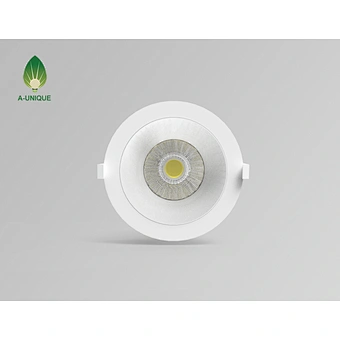

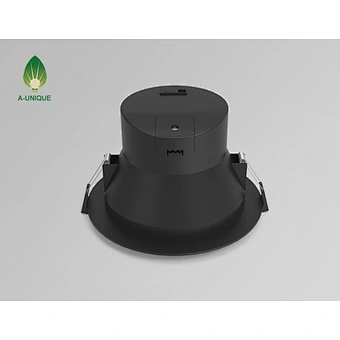

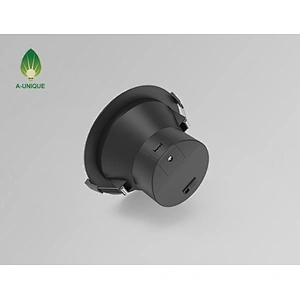

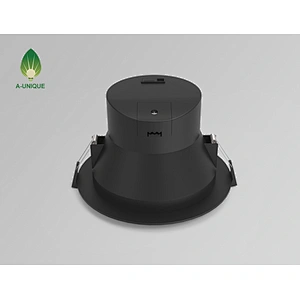

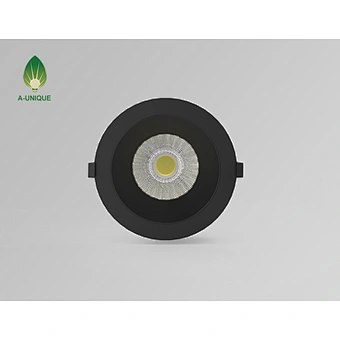

ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver
ECO COB 10W LED Downlight with built-in dimmable Driver

ECO COB 10W LED Downlight with built-in dimmable Driver

Model NO.
AU30-DL10W-3C
Features:
1. Distinctive deep recessed, low glare design
2. Tri-colour: WW / CW / DL selectable via switch on rear
3. ECO Plastic-Aluminum housing, cost efficient
4. Built-in dimmable driver, flicker free version available
5. Triac Dimmable,Compatible to most branded dimmers, and C-bus2 system
6. 3 Years warranty
Quantity:

Product Model No.:
AU30-DL10W-3C

Model No.AU30-DL10W-3C
Dimension(mm)φ103*H85
Cutout(mm)85
Wattage(w)10W
Input Voltage(v)AC200~240V
Light SourceCOBChip
SDCM<6
CCT(K)3 CCT3000K-4000K-5000K or 3000K-4000K-6000K or 2700K-3000K-4000K Switchable
Luminious Flux (lm)±5%700-900LM
CRI>80Ra
Beam Angle(°）90°
DimmingYes, Triac Dimming
Fire RatedYes
Protection ClassClass II
Degree of protection(IP)IP20 for the whole luminaire, IP44 for the front portion of the lamp
Housing MaterialPlastic + Aluminum
ColorHousingwhite / black
L7054000Hrs
Glow Wire Test(℃）650℃
Operation Terp.(℃）-20~ 45℃
InstallationRecessed
CertificatesCE, Rohs, SAA & C-tick
Warranty3 Years

Applications:
Hospitality applications | Residential applications | Office Buildings | Hotels | Shopping Malls | Supermarkets
