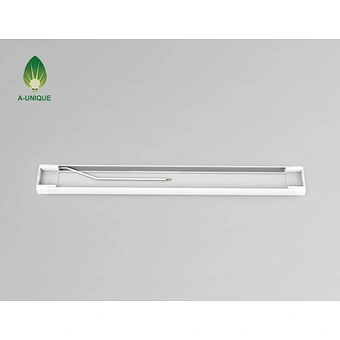

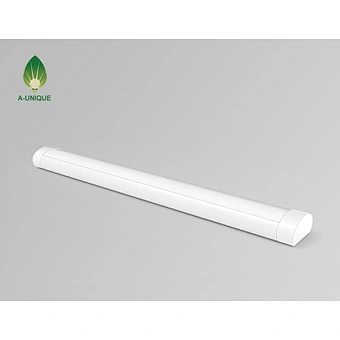

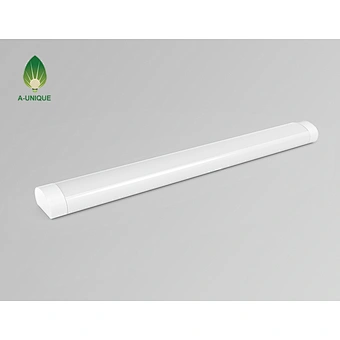

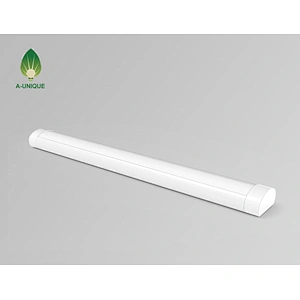

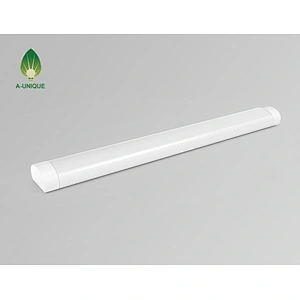

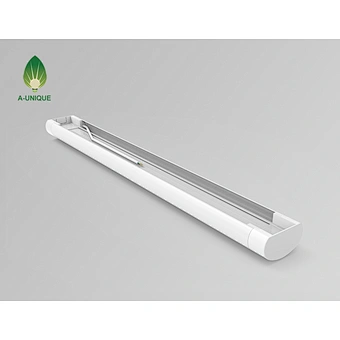

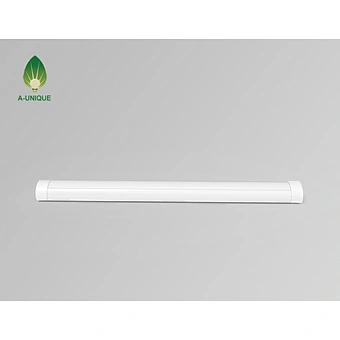

Slimline LED Batten 80mm width
Slimline LED Batten 80mm width
Slimline LED Batten 80mm width
Slimline LED Batten 80mm width
Slimline LED Batten 80mm width
Slimline LED Batten 80mm width
Slimline LED Batten 80mm width
Slimline LED Batten 80mm width
Slimline LED Batten 80mm width
Slimline LED Batten 80mm width
Slimline LED Batten 80mm width

Slimline LED Batten 80mm width

Model NO.
AU06-BAT20W2F/36W4F/50W5F
Features：
(1) Convenient and easy installation
(2) PA14 terminal block or Quick play & plug connector
(3) Flicker free built-in driver
(4) with 3cct is select (WW-CW-DL) via DIP Swich on the back of the batten
(5) Surface mounted and Suspended mounted
(6) CE RoHS SAA C-tick approved
Quantity:

Product Model No.:

AU06-BAT20W2F / AU06-BAT36W4F / AU06-BAT50W5F

Specifications
Model No.:AU06-BAT20W2FAU06-BAT36W4FAU06-BAT50W5F
Dimension(mm):600*80*431200*80*431500*80*43
Wattage:20W36W50W
Voltage:AC200~240V 50/60Hz
LED Chip:SMD2835, >80Ra
CCT:2700K, 3000K, 4000K, 5000K, 6000K or Tri-color available
Luminaire EER(lm/W):100lm/w or 120lm/w available
Material:Aluminum + PC
Fixture Color:White
Beam Angle:120°
LED Driver:Non-dimmable, Flicker Free
PF:>0.9
IP Rating:IP20
Warranty3 Years
Operating Temperature-20 ~ 45℃
CertificateCE, Rohs, SAA & C-tick

Applications:
Warehouses, Supermarkets, Shopping Malls, Office Buildings, Workshops Car Parks

Send Message

* clear input
*

Related Products

Slimline LED Batten 120mm width
Slimline LED Batten 120mm width
Model NO. AU08-BAT20W2F/36W4F/50W5F
LED Batten 60mm width
LED Batten 60mm width
Model NO. AU02-BAT18W2F/36W4F/50W5F

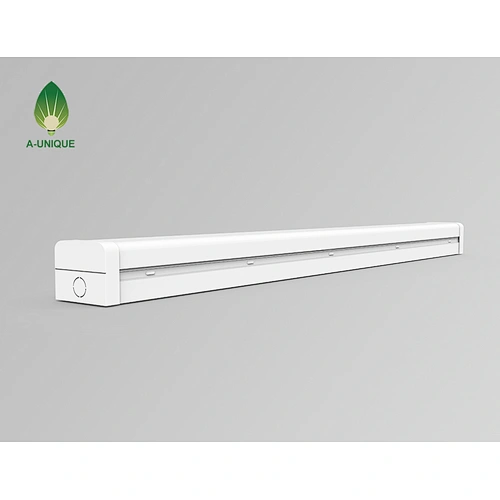

LED Batten 80mm width
