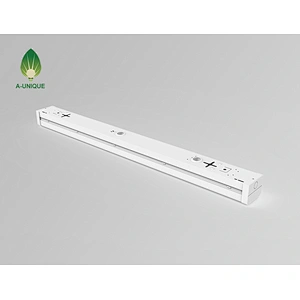

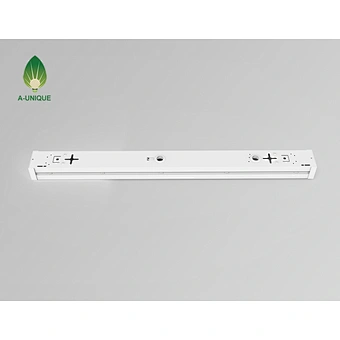

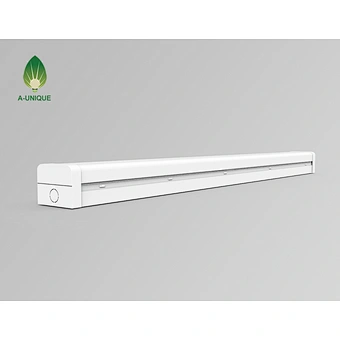

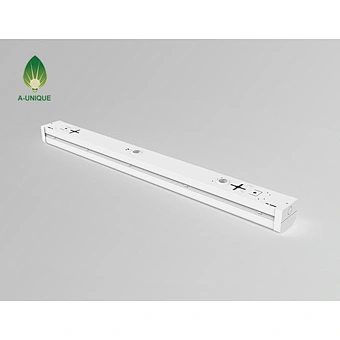

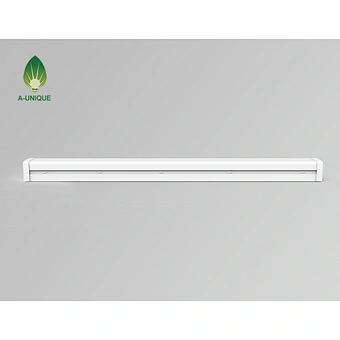

LED Batten 80mm width
LED Batten 80mm width
LED Batten 80mm width
LED Batten 80mm width
LED Batten 80mm width
LED Batten 80mm width
LED Batten 80mm width
LED Batten 80mm width
LED Batten 80mm width

LED Batten 80mm width

Model NO.
AU01-BAT20W2F/40W4F/60W5F
Features:
(1) Back & side cable entry points , big entry hole(Dia25mm)
(2) Big PA16 terminal block or Quick play & plug connector
(3) Whole LED Replaceable Board, even light distribution
(4) Sealed LED Module, Insect and dust proof
(5) Surface mounted and Suspended mounted
(6) Suspension strap attached to the lamp & base part to convenient electrician’s installation
(7)Complete version, available in single CCT, Tri-color, Sensor , Maintained Emergency, Non-maintained Emergency and Sensor + Maintained Emergency
Quantity:

Product Model No.:
AU01-BAT20W2F/AU01-BAT40W4F/AU01-BAT60W5F

Specification
Power:20W/40W/60W
LED Chip:SMD2835
Luminous:2000lm/4000lm/6000lm
Color Temperature:2700K,3000K,4000K,5000K,6000K
CRI:>80Ra
Beam Angle:120°
IP RatingIP20
Working Life:≥ 50000 hrs
Dimensions
Housing Color:White
Driver:Non-dimmable
Weight0.95Kg/1.8KG/2.5KG
Size600*80*65mm/1200*80*65mm/1500*80*65mm
IK RatingIP08
Warranty3 Years
Package Size:

600mm—6pcs/ctn

1200mm—4pcs/ctn

1500mm—4pcs/ctn

Work Environment
Voltage:AC220~240v
Operating Temperature:-20~ + 45℃
Certificates
CertificatesCE ,Rohs, SAA, C-tick, LVD,EMC
Test ReportsIEC, EMC, IES, Intergrating Sphere test reports

Applications:
Supermarkets, Shopping malls, Factories, Parking Lots, Train/metro stations, office building & warehousing etc.
